Description

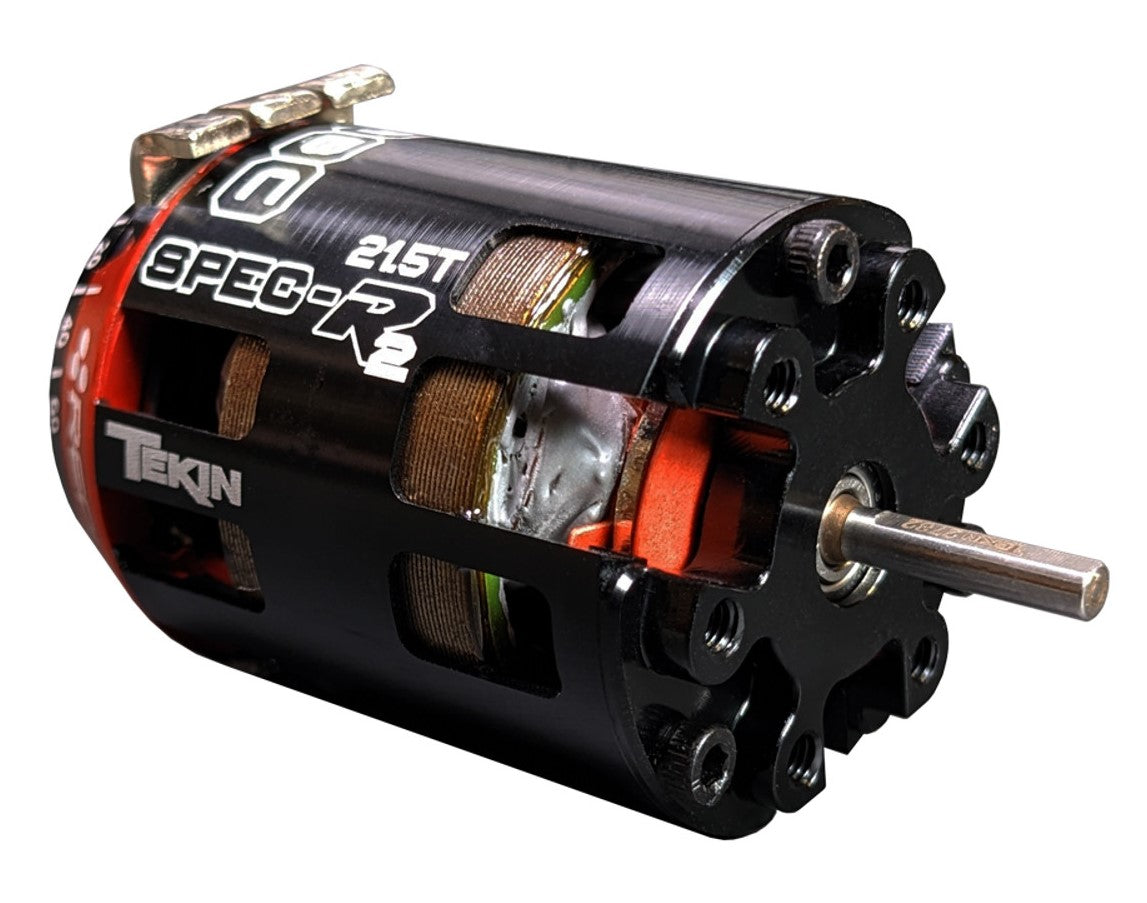

Tekin TT2689 21.5T Gen4 Spec-R2 BL Sensored Motor
Tekin's SPEC-R2 brings next-level performance to SPEC racing classes. Improving on the original SPEC-R design, they revamped and refined the stator, rotor and materials used to increase both speed and torque while providing minimal fade during the late stages of the race. The SPEC-R2 is a hand-crafted, high-performance racing motor that is ready to hit the track right out of the box.
Includes:
TT2776 12.5mm BLUE rotor that is strong and durable.
Features:
60 Degrees Adjustable Timing Advance
SPEC Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Sensored System Ready
Anodized Endbell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Legal in Major Governing Race Bodies
ROAR Approved
Specifications:
Motor Turns: 21.5T
Input Voltage: 1S-3S LiPo/LiHV 4.2V-13.05V
Design: 2-pole 3-slot
Weight: 5.27oz / 149.5g
Shaft Size: 3.18mm / 1/8in
Motor Length: 50.25mm / 1.987in
Motor Diameter: 35.85mm / 1.40in
Bearing Dimensions: Front 4 x 13 x 5mm / Rear 1/8 x 3/8 x 5/32in
Rotor Size: TT2776 12.5mm Blue
Max Operating Temperature: 180F / 82C
Max RPM: 100,000
Mounting Pattern: M3 @ 25.4mm / M3 @ 1.0in
Rebuildable: YES
