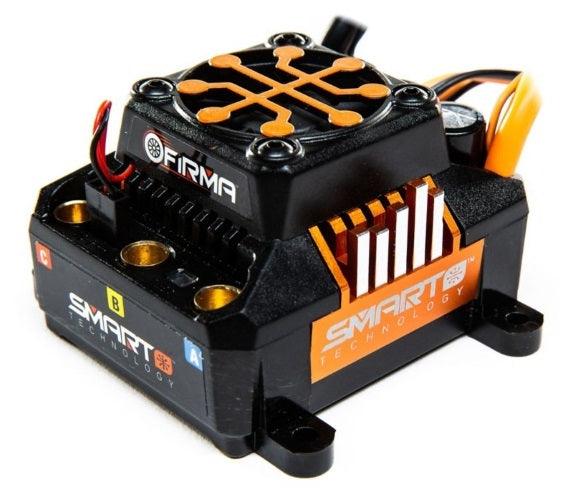

Spektrum SPMXSE1160CP Firma 160 Smart ESC w/Capacitor 3S - 8S

Spektrum SPMXSE1160CP Firma 160 Smart ESC w/Capacitor 3S - 8S

Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Added inline capacitor for additional ESC protection
Waterproof
Multiple options for easy programming:
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty

Product Overview
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
Spektrum™ Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter

What's in the Box?
(1) Spektrum™ Firma™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Specs:
Auto Cutoff: Yes
BEC: Yes
BEC Continous Current: 5A
BEC Type: Switch Mode
BEC Voltage: 6V
Battery Connector: IC5
Battery Input Lead: 10AWG Dual IC5, EC5 compatible
Brakes: Yes
Forward: Yes
Height: 1.8" (44mm)
Input Voltage: 3S - 8S LiPo
Length: 2.7" (70mm)
Low-Voltage Cutoff Programmable: Yes
Maximum Burst Current: 1050A
Maximum Continuous Current: 160A
Motor Connector: 6.5mm Bullet
Motor Output Lead: 6.5mm Female Bullets
Overload Protection: Yes
Programmable: Yes
Reverse: Yes
Sensored: No
Weight: 9.9oz (280g)
Width: 3.03" (77mm
