Kyosho 1/10 Scale Radio Controlled Electric Powered 4Wd Fazer Mk2 Fz02

Kyosho 1/10 Scale Radio Controlled Electric Powered 4Wd Fazer Mk2 Fz02 Kit.

Overview:
For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can't be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design syDistinctive flowing bodylines with rear wing of the second generation Supra marked the renewal of Japan's homegrown sports car. While the last production rolled off the line in 2002, this Supra model retains its popularity through to this day.nergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 274mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Features:

Distinctive flowing bodylines with rear wing of the second generation Supra marked the renewal of Japan's homegrown sports car. While the last production rolled off the line in 2002, this Supra model retains its popularity through to this day.

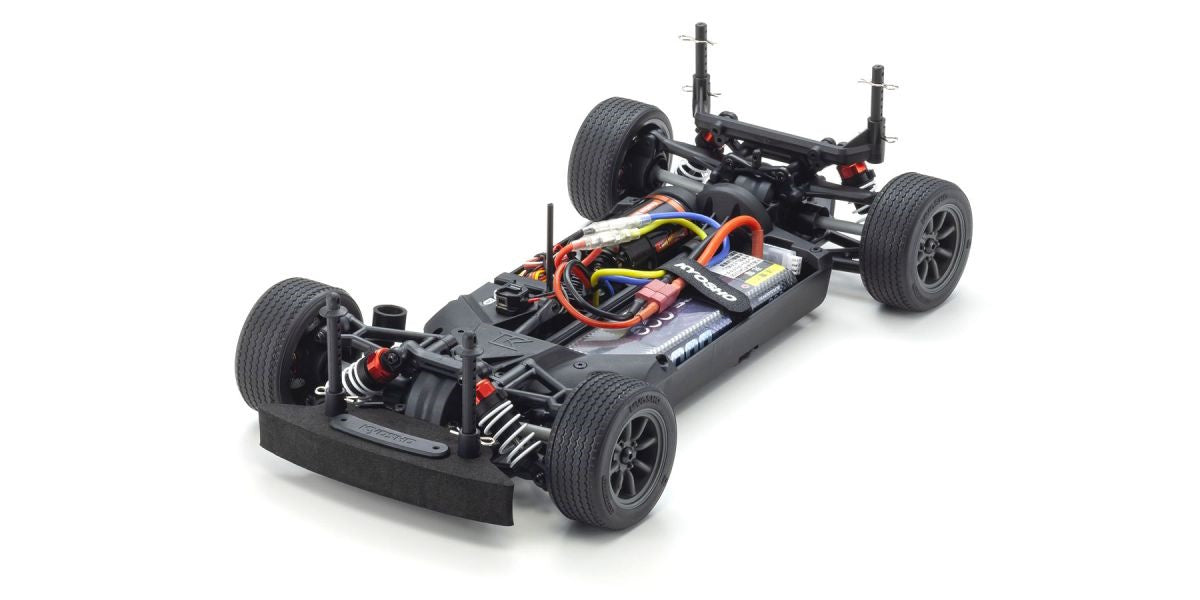

Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.
Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

New design oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control.

Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T - 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Hard plastic drift tires realizes controllable sliding performance, and equipped with white 5-spoke wheels on K mark logo to improve appearance.

Comes with the new powerful 550 size 14T brushed motor(G14L). The long can with Steel ring around the motor case and internal cooling fan provides efficient torque and high speeds.

Specs:
Length 455mm
Width(Body width) 200mm(210mm
Height 120mm
Wheelbase 260mm
Tread (F/R) F:174mm/R:174mm
Tires (F/R) F:f64×24.2mm/R:f64×24.2mm
Gear Ratio 6.54:1
Weight 1650g(approx.)
Syncro KT-231P+ transmitter
Motor G14L
Includes
Completed chassis with R/C radio installed
Factory assembled body complete with color scheme
Syncro KT-231P+ transmitter
Hexagonal wrench
Spanner
Setting change parts
Required to Run:
4 x AA Batteries
Battery 2s Lipo or NiMh and Capable Charger
