Description

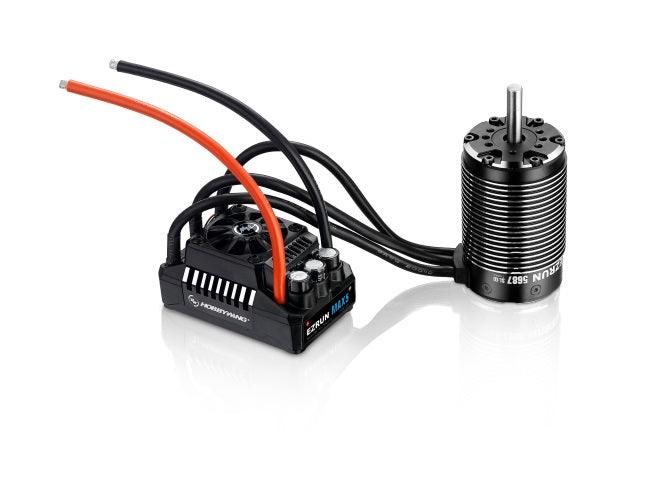

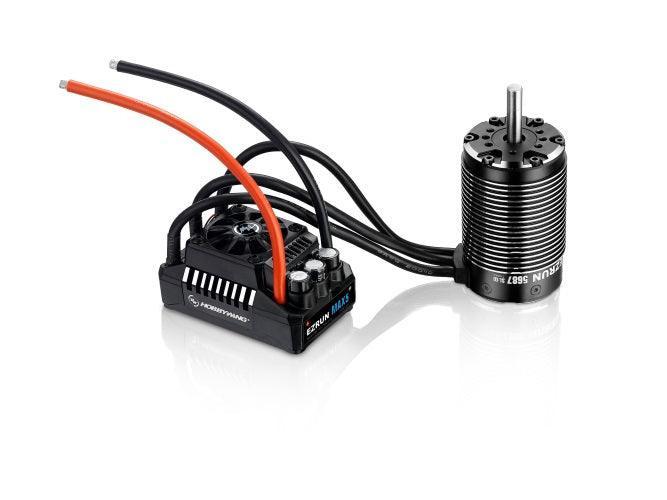

Hobbywing EZRun MAX6 V3 ESC & Motor Combo w/5687SL 1100kV Brushless
Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo includes the 5687SL 1/5 scale, 1150kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.
Specifications:
Motor:
Model: 5687SL-1100KV
Pole: 4
KV (No-load): 1100KV
Resistance: 0.0041 Ω
Current (No-load): 4.1 A
Max Output Power: 5800 W
Current at the point of M.O.P: 200 A
Motor Diameter: 56mm
Motor Length: 87mm
Shaft Diameter: 8.0mm
Shaft Length: 31.0mm
LiPo Cells: 3-8
Weight: 916g (32.21oz)
Applicable: 1/5th RC Vehicles Truck/Dragster
ESC:
Continuous Current: 160A
Peak Current:
Peak Current:
Peak Current: 1,050A
Motor Type: Sensorless Brushless Motor
Applications: 1/6th Touring Car, Buggy, Truggy and Truck
Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH): 70x56x46.5mm
Weight: 240g
Programming Port: FAN /PRG Port
