Description
HWI38010803

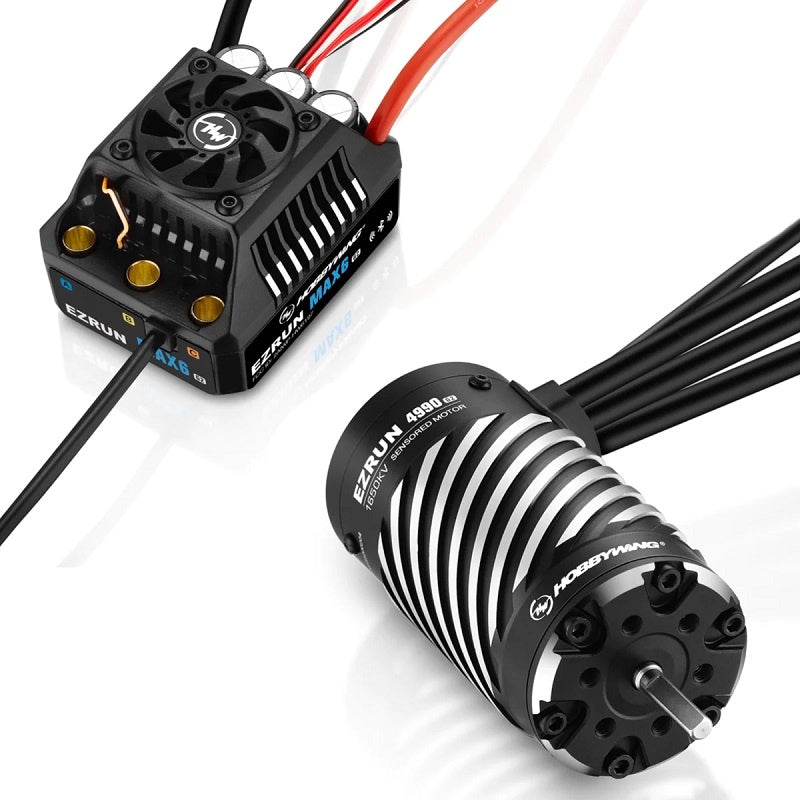

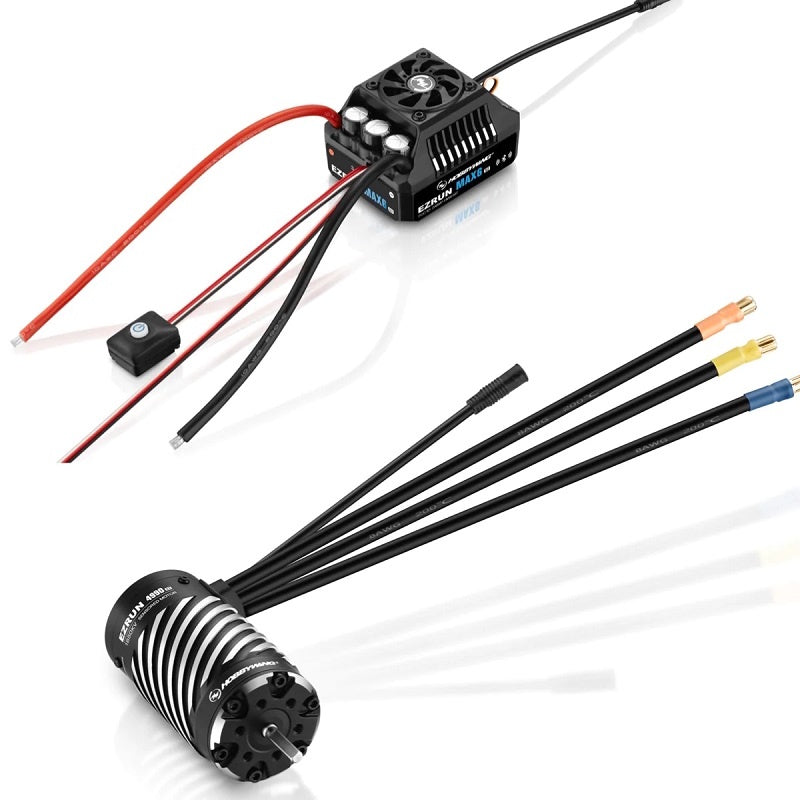

Ezrun MAX6 G2 4990SD Motor Combo
Note: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.
Includes:
(1) Ezrun MAX6 G2 ESC
(1) EzRun 4990 SD G2 motor or EzRun 5690 SD G2 motor with your choice.
User's manual
A HOBBYWING decal
Motor Specifications:
LiPos: 3-8S
No-Load Current: 7.0A
Diameter/Length: D-49mm (1.93") / L-90mm (3.54")
Shaft Diameter/Length: 5mm (0.20") / L-21.5mm (0.85")
Bearing Size (mm): Front: D19*D6*T6 / Rear: D19*D6*T6
Poles: 4
Weight: 701g
Applications: 1/7th On-Road, Short Course Truck, Truck / 1/8th Heavy-Duty Monster Truck
ESC Specifications:
Cont./Peak Current: 200A / 1200A
Motor Type: Sensored / Sensorless Brushless Motor
Applications: 1/6 & 1/7 On-Road, Truck, Monster Truck
Motor Limit (note): With 6S LiPo: KV<2400 / With 8S LiPo: KV<1700 4990/5690 Size Motor
LiPo Cells: 3-8S LiPo
BEC Output: 6V/7.4V/8.4V adjustable, continuous current 8A (Switch-mode)
Cooling Fan: A stable 6V or 7.4V or 8.4V from the built-in BEC
Size/Weight: 70(L) x 56(W) x 45.5(H)mm / 245g (Included input wires)
Programming Method: iOS or Android smart phone (installed with the HW LINK app)
