Furitek Stinger Brushless Power System w/1212-3450kV Brushless Motor Axial SCX24

Furitek Stinger Brushless Power System w/1212-3450kV Brushless Motor Axial SCX24

FURITEK STINGER BRUSHLESS POWER SYSTEM FOR SCX24

With the incredible successful release of Komodo brushless motor and Lizard Pro brushless ESC for SCX24 in 2021, Furitek team has listened to customer’s feedbacks and has developed a smaller motor yet powerful and smooth to further improve the performance of the SCX24.

Introducing the Furitek STINGER brushless power system for SCX24, the system includes the Micro Komodo 1212 3450kv with lighter and smaller size yet very powerful at low speed but also more powerful and fast at high speed. The motor is designed with high torque at low speed crawling and with a special firmware from the Lizard Pro ESC, this motor is super smooth without any cogging at both low and high speed operation.

With Furitek FURICAR mobile phone app and Bluetooth module, users can set up any parameters on the run without touching the truck, creating seamless adjustments for your favorite settings.

Features:

A smaller and lighter brushless motor Micro Komodo for low C.G. setup same like stock
High performance and powerful 30A/50A brushless ESC with FOC technology
Bluetooth module for wireless connection
Precision CNC aluminum motor mount for better holding motor in place.
Precision CNC brass pinion for long-lasting operation
Powerful at low speed but also more powerful and fast at high speed
High torque at low speed crawling
Super smooth without any cogging at both low and high speed operation­
Lifetime FREE firmware upgrade!

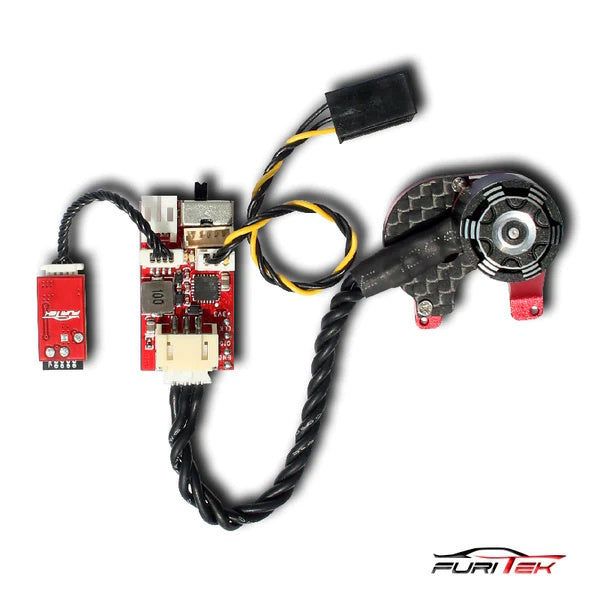

Package includes:

1 x LIZARD PRO 30A/50A BRUSHED/BRUSHLESS ESC FOR AXIAL SCX24 WITH FOC TECHNOLOGY
1 x Bluetooth module

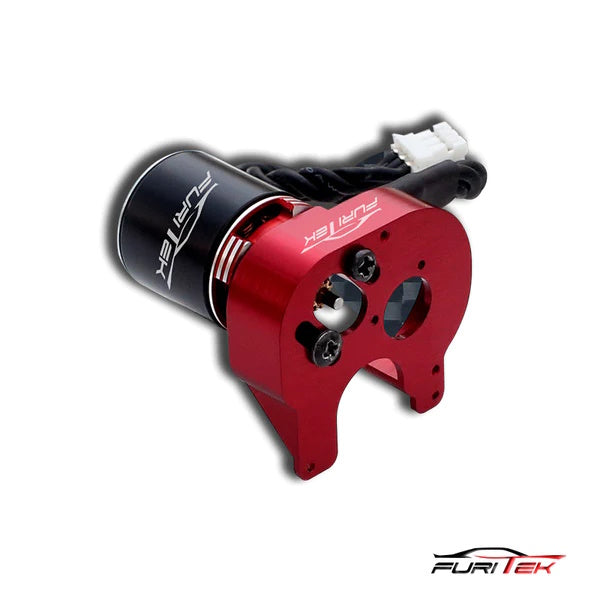

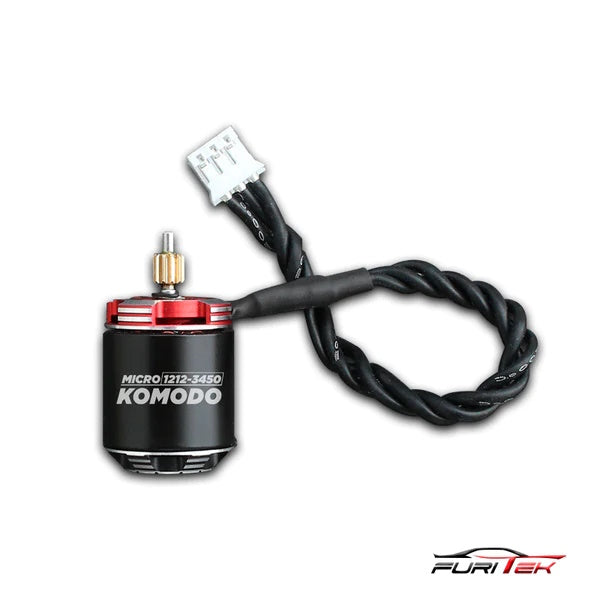

1 x Micro Komodo 1212 3450KV brushless motor
1 x 11T 0.3M CNC Brass Pinion

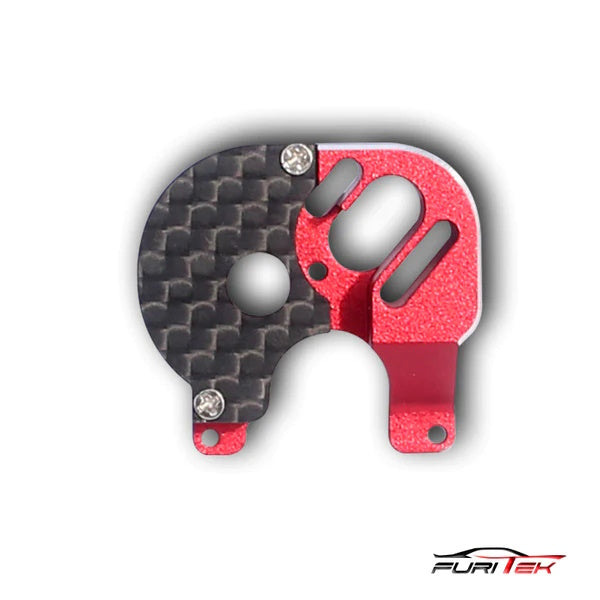

1 x CNC aluminum motor mount

Motor Features and Specs

Features:
12 Pole hi-torque motor design.
Super thin (0.2 mm) stator laminations---lower eddy losses---maximizes efficiency.
Japansese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
High purity and higher temperature single copper windings ---lower copper losses,
very good heat dissipating--maximizes efficiency.

Specifications:

KV (RPM/Motor) – 3450
No-load current @10V – 0.7A
Watt – 120W
Battery – 2-3S
Resistance – 0.16 Ohms
Max Current – 10A
Slot/Pole – 12
Motor size (mm) – 15.5x20.6
Shaft (mm) – 1.5x6
Weight (g) – 17.5

ESC Features and Specs

Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX

Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Built-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
