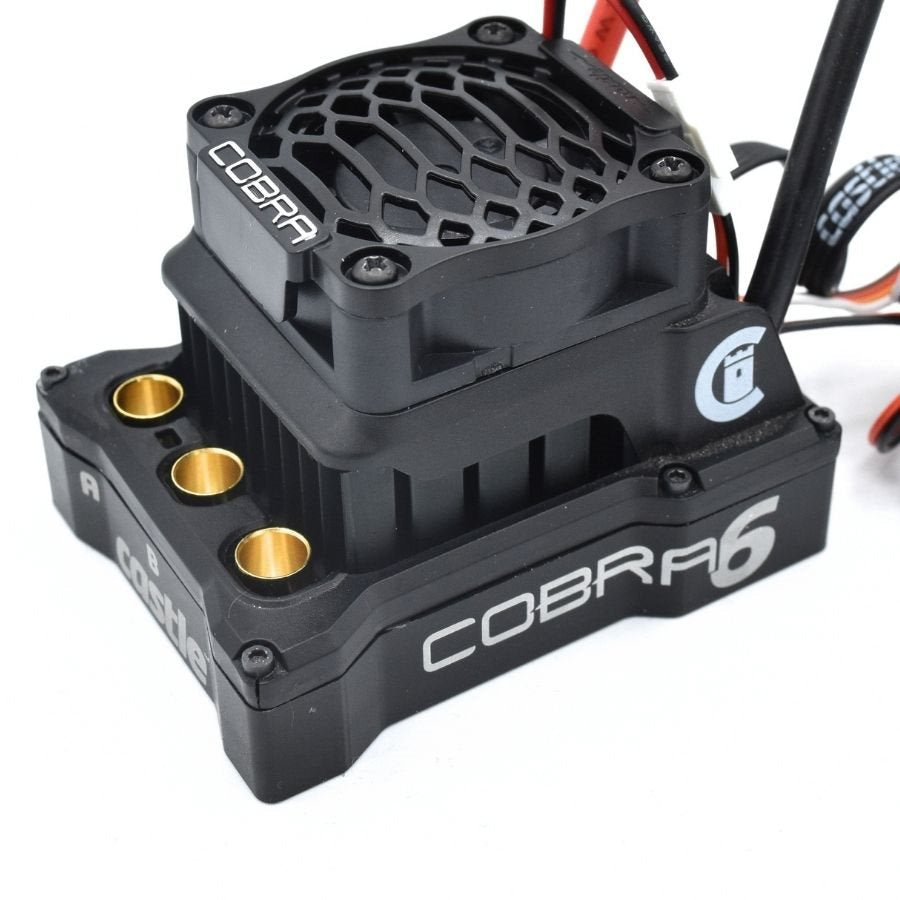

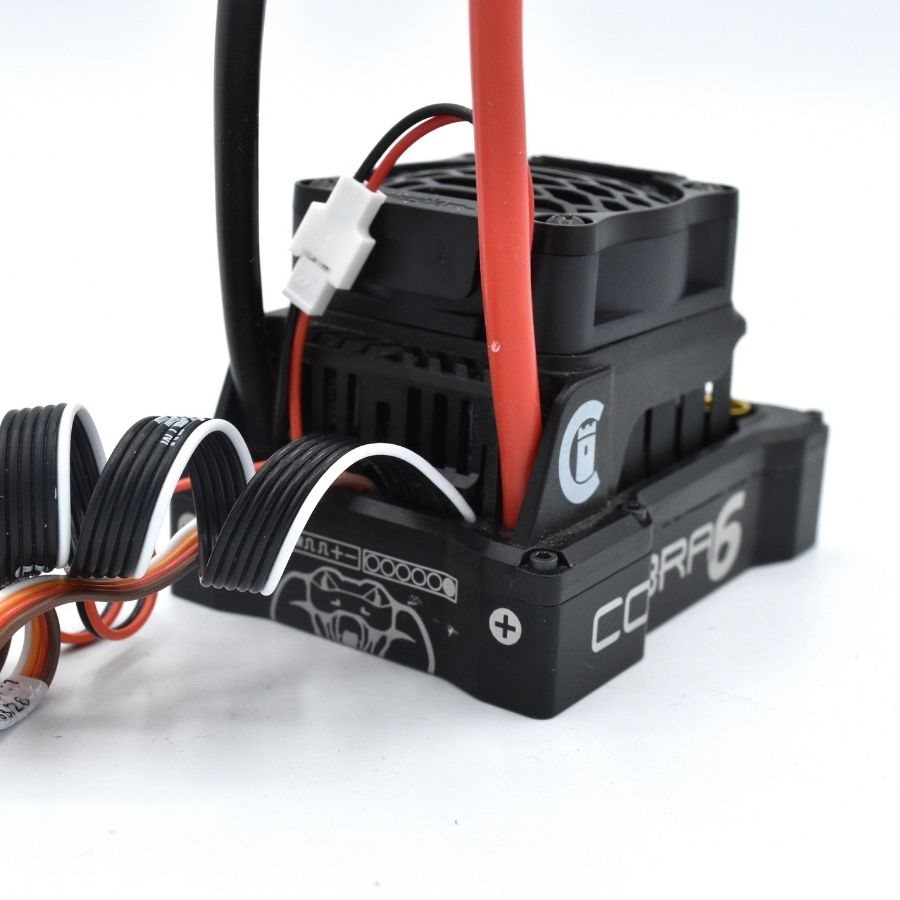

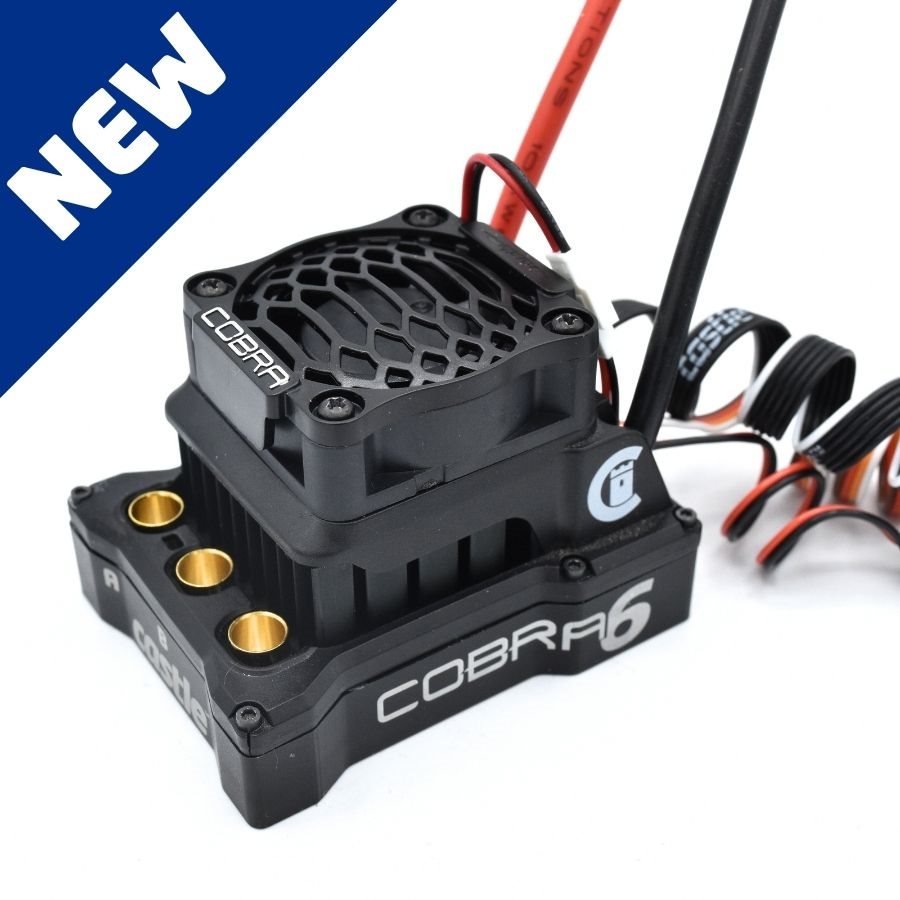

Castle Creations COBRA 6 33.6V 8A PEAK BEC 8S ESC

Castle Creations COBRA 6 33.6V 8A PEAK BEC 8S ESC

The Cobra 6 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before. One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 6 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup. Crafted with a CNC aluminum bottom case, the Cobra 6 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

MORE FEATURES:
SmartSense™, Sensored Only and Brushed Motor Operation Modes
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 40mm cooling fan
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Cobra 6 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
Mounting holes located in bottom of aluminum case for installation into vehicle

Technical Specs
Application Guidelines:
1:6th Scale vehicles weighing up to 25 lbs
Input Voltage Range:
MIN: 2S LiPo, MAX: 8S LiPo (33.6V)
BEC Specifications:    5.5V to 8.0V adjustable in 0.1V increments (8A peak), default 5.5V
Running Modes:
Sensored, Sensorless and SmartSense™ when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
Brake:    Proportional
Reversible:    Yes but may be disabled for racing.
On/Off Switch:    Yes, waterproof
Cooling Fan:    Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
Size (L x W x H):    2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
Weight (with wires):    5.75 oz. (163 grams)
Connectors type:
6.5mm female bullets for motor connection
Items Needed for Operation:    A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Operating environment:
Waterproof design for all weather conditions
Programmability:    Fully programmable Castle feature set using the included Castle Link V4 USB adapter and freely downloadable Castle Link 2 Windows™ software, or the Castle Link iOS® or Android® app with B-LINK 2™ Bluetooth™ Adapter (sold separately).
Product Use Statements:
Recommended battery capacity for 1:6th scale vehicles is 5000mah. We recommend using 50C continuous discharge or higher LiPo batteries.
Surge ratings should never be used to determine a pack’s suitability for a brushless application.
We recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors.
Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty.
Although the Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt.
The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Note: The Cobra 6 is not designed for use in extremely high-speed applications and drag setups, as such the Castle warranty does NOT cover failure when used in high speed or drag applications.
