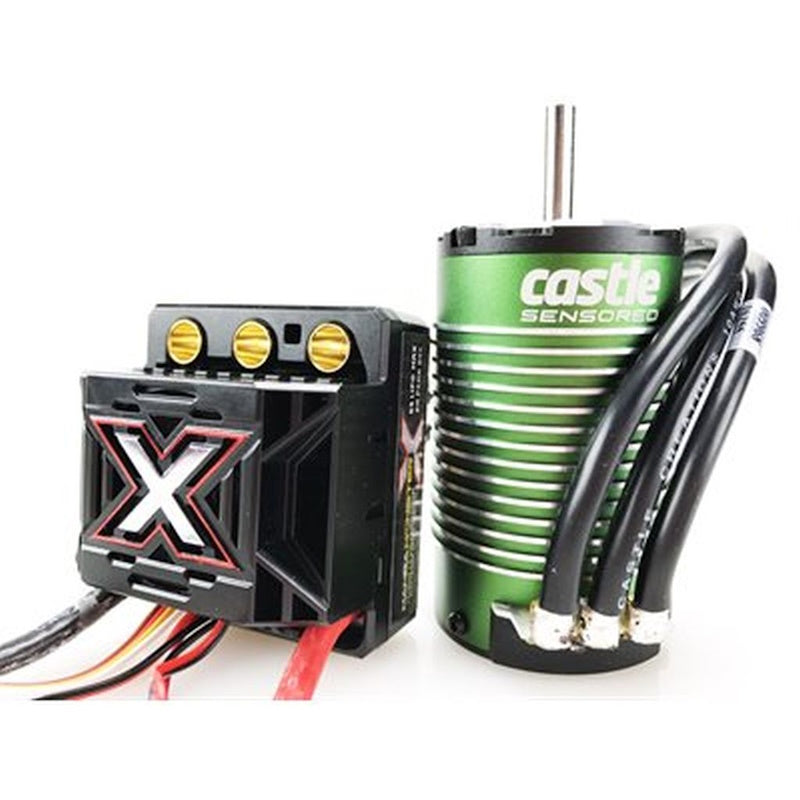

Castle Creation Monster X 25.2V ESC,8A Peak BEC w/ 1515-2200kV V2 Sensored Motor

CSE010-0145-06

Monster X 25.2V ESC,8A Peak BEC with1515-2200kV V2 Sensored Motor
PUTTING THE X IN EXTREME!
Our Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle's legendary "monster" performance to a whole new level.

New 1515-2200Kv V2 motor now included! Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

Includes:
Mamba Monster X ESC
1515-2200Kv V2 Brushless Sensored Motor
Castle Sensor Harness Adapter
210 mm sensor wire (for sensored operation)
Coupon for free Castle Link USB
Mamba Monster X Quick Start Guide and Decals

MAMBA MONSTER X Features:
Input Voltage Range : 2s-6s LiPo (ESC Only)
SMARTSENSE™, SENSORED ONLY and BRUSHED Running Modes
Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
Removable 30mm fan
Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
DATA LOGGING to capture and record performance data from your vehicle
AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
Convenient TRANSMITTER PROGRAMMING for six common adjustable settings inlcuding cutoff voltage and drag brake.
SMARTSENSE™ uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode.
CASTLE LINK USB programming kit (coupon included with purchase)
Optional smartphone-based programming with the B-LINK™ BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store

1515-2200 V2 Motor Features:
Input Voltage range: 2s-6s LiPo
Redesigned stator and rotor assemblies to improve magnetic flux.
Reduced magnetic cogging, producing less residual drag brake.
Increased efficiency, resulting in lower temperatures and longer run times.
Smoother start-up, reducing cogging or stuttering when starting from a stop.
Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly. (see note above)
High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
High-Performance 0.2mm Steel Lamination Stacked Stator
Oversized, low-resistance, gold-plated solder tabs
Sensor board with High Quality Temperature-Stabilized Sensors
T6 Aluminum CNC Machines Front/Rear End bell

ESC Specifications:
Input Voltage Range: MIN: 2S LiPo; MAX: 6S LiPo (25.2V)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Brake: Proportional; Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable
Size: Length: 2.09" (53mm); Width: 1.93" (49mm); Height: 1.44" (36.4mm); Weight (with no battery connector): 3.92 oz. (111.g)
Connectors: 6.5mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, 6.5mm Castle Connectors are recommended.

ESC Specifications:
Input Voltage Range: 2-6S LiPo
Kv: 2200; Max. RPM: 60,000
Size: Length: 75.4mm; Diameter: 40mm (41.4mm with fins); Weight (w/wires): 429g / 15.1oz; 380g without wires.
Shaft Size: Length: 20mm; Diameter: 5mm
Mounting Hole Specifications: M3 and M4 @ 25mm
Connectors: 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire.
Application Guidelines: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
