Furitek FUR-2738 NanoModo 2026 Brushless Power System Motor & ESC: Axial SCX30.

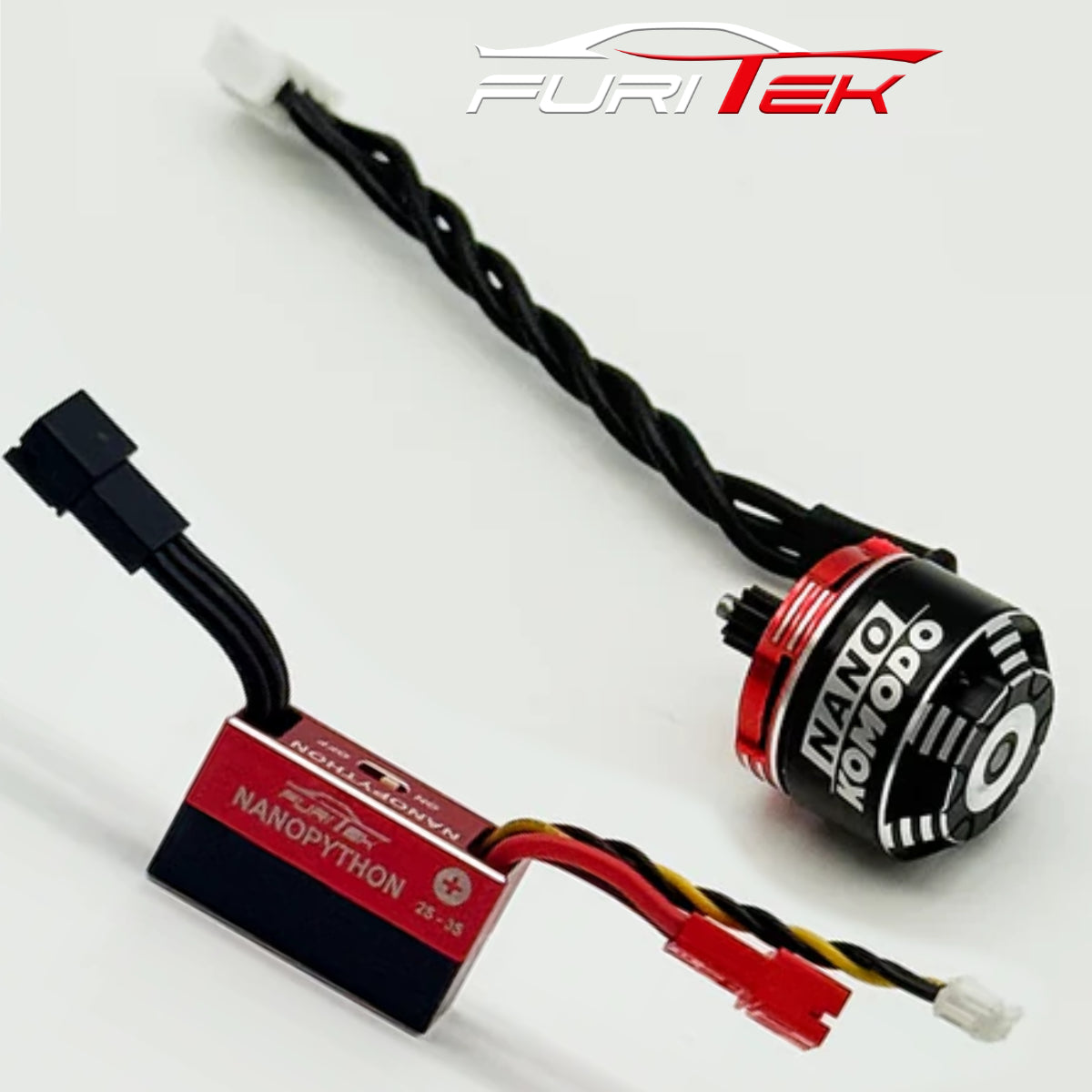

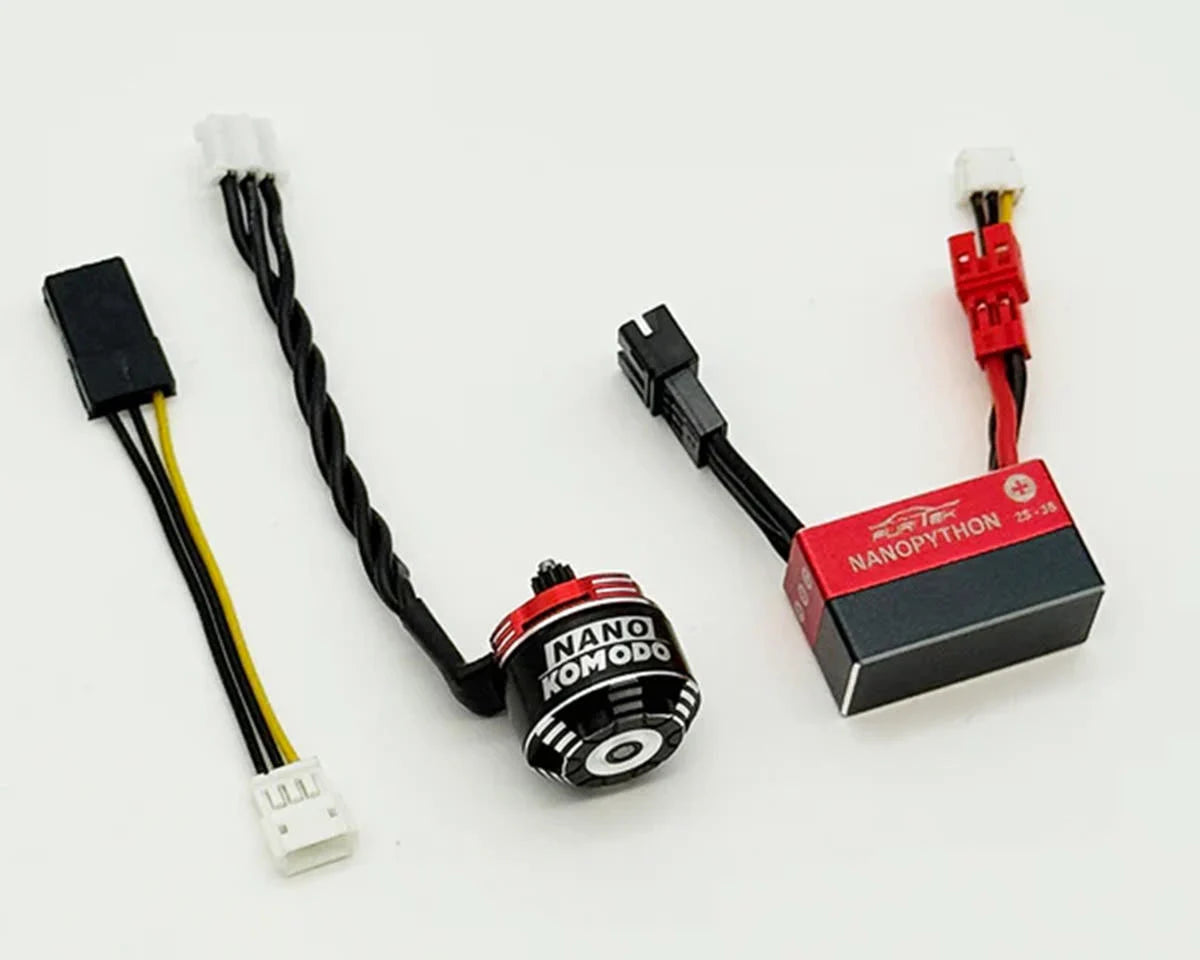

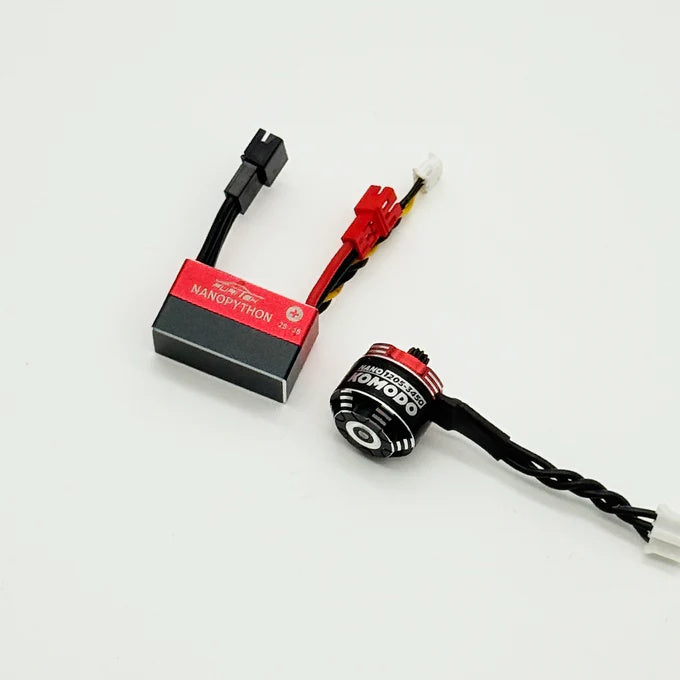

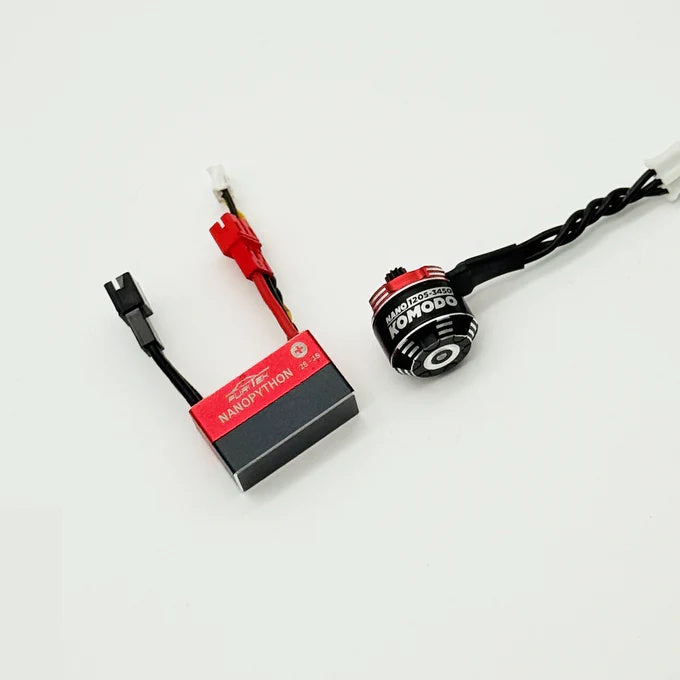

Furitek NanoModo 2026 Brushless Power System with NanoPython and NanoKomodo for Axial SCX30
Furitek NanoModo Brushless Combo: Next-Generation Compact Power for Axial SCX30
Introducing the Furitek NanoModo 2026 Brushless Combo, the next evolution of the legendary MicroModo system — now smaller, smarter, and even smoother!
Specifically designed for the Axial SCX30, the NanoModo 2026 combines the NanoPython Brushless ESC with built-in wireless tuning and the NanoKomodo high-performance brushless motor, delivering unmatched power, precision, and control in an ultra-compact form factor.
NanoModo Features:
Tailored for Axial SCX30:
The NanoModo Brushless Combo is precision-engineered to fit perfectly into the compact chassis of the Axial SCX30, ensuring clean installation and top-tier crawling performance.
All-New NanoPython ESC:
The NanoPython is Furitek’s smallest and most advanced FOC ESC ever, featuring a built-in wireless tuning module that allows direct connection to the Furicar App on iOS and Android for easy setup, tuning, and real-time telemetry — no cables, no adapters required.
Brushless Power System:
Fully brushless design provides superior efficiency, smoother throttle control, and significantly higher torque than brushed systems — ideal for serious micro crawler enthusiasts.
High-Performance NanoKomodo Motor:
The NanoKomodo motor is engineered for maximum torque and efficiency, offering precise low-speed crawling performance while maintaining smooth, consistent power delivery — the perfect match for SCX30’s lightweight drivetrain.
Ultra-Compact and Clean Design:
Both ESC and motor are incredibly small and lightweight, giving you maximum flexibility in tight SCX30 builds while maintaining a clean and organized layout.
Powerful 5A BEC:
The built-in 5.5V / 7.4V 5A BEC provides stable, high-current output for any servo — even the most power-hungry micro servos.
Unmatched Smoothness and Control:
With Furitek’s FOC (Field-Oriented Control) algorithm, the NanoModo system delivers buttery-smooth throttle response and precise control at even the lowest RPMs — ideal for crawling and scale maneuvering.
Why Choose the NanoModo Combo?
Specifically designed for the new Axial SCX30, the Furitek NanoModo 2026 system combines cutting-edge brushless technology with extreme compactness and intelligent wireless tuning.
It’s the ultimate upgrade for drivers who want the best performance, cleanest installation, and smoothest control in a micro crawler setup.
NanoModo 2026 — smaller, smarter, and smoother.
Compact power perfected. Built for Axial SCX30.
NanoPython Features
FOC (Field-Oriented Control technology)
Built-in wireless tuning module (connects via Furicar App on iOS & Android)
Super slow and ultra-smooth throttle response
New-generation firmware with optimized startup and FOC transition
Supports Brushed/Brushless motors (switchable via app, default brushless)
Powerful 5A BEC for high-torque servos
Ultra-compact and lightweight design
Easy tuning and monitoring via mobile app
Real-time telemetry up to 10Hz
Free lifetime firmware updates
NanoPython Specifications:
Input Voltage: 2–3S LiPo
BEC: 5.5V / 7.4V, 5A
Continuous Current: 20A
Burst Current: 50A
Built-in Wireless Tuning Module
Extra requirements:
A standard 2-4 channel radio system
NanoKomodo Motor Features
12-pole high-torque motor design
Ultra-thin 0.2mm stator laminations for reduced eddy losses and higher efficiency
Japanese NMB high-speed ABEC5 bearings for durability
Precision-balanced rotor for exceptional smoothness and reliability
CNC-machined 6061-T6 aluminum heatsink can for superior cooling
High-purity copper windings for maximum power and thermal stability
Optimized torque curve for micro crawler gearing and SCX30 drivetrain
NanoKomodo Specifications:
KV (RPM/Volt): 3450KV
No-load Current @10V: 0.6A
Power: 100W
Battery: 2–3S LiPo
Resistance: 0.18Ω
Max Current: 10A
Slot/Pole: 12
Shaft (mm): 1.5 × 6
Weight: 10g
Furitek NanoModo 2026 — The Future of Nano Brushless Power.
Smaller Size. Smarter Control. Smoother Performance.
