Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Arrma Grom

Furitek FUR-2581 SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Arrma Grom.

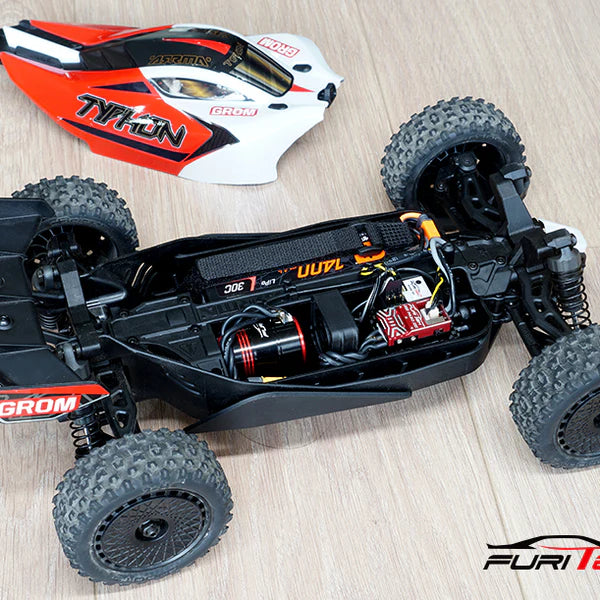

Introducing the Furitek SCORPION 5600kv Brushless Sensored ESC/Motor Power System for Arrma 1/18 Grom Trucks
Furitek, a renowned name in the world of mini crawler electronics, is expanding its horizons by bringing its expertise to new markets. We are proud to present the Furitek SCORPION Brushless Sensored ESC/Motor Power System, designed specifically for the 1/18 Arrma Grom trucks. This powerful system features a sensored ESC and a high-performance brushless motor, delivering unparalleled performance and smooth control. It is a direct plug and play system for Arrma Typhon Grom, Arrma Granite Grom and Arrma Mojava Grom. Just need a new TX/RX and it's ready to have a blast.

Support:
 1/14 Mojave Grom Mega 380 Brushed 4X4 Small Scale Desert Truck RTR
 1/18 4WD GRANITE GROM MEGA 380 BRUSHED 4X4 MONSTER TRUCK
 1/18 TYPHON GROM MEGA 380 BRUSHED 4X4 SMALL SCALE BUGGY RTR

Key Features:
Support for Sensored/Sensorless Operation:
The SCORPION ESC/Motor combo supports both sensored and sensorless modes with a constant current of 40A and a burst current of 70A. This flexibility ensures optimal performance under various driving conditions.

Plug & Play Compatibility:
Equipped with an IC2 battery connector, it is compatible with both IC2 and EC2 connectors, making installation a breeze.

Wireless Setup Module:
The built-in wireless setup module eliminates the need for separate wires and is controlled by the FURICAR App, available on both Android and iOS.

Live Tuning:
Enjoy real-time tuning with the Furicar App, allowing you to make adjustments on the fly without stopping the vehicle. This feature enhances the user experience by providing immediate feedback and control.

Smooth Throttle Control:
Experience super smooth throttle control for enhanced driving precision, ensuring that every movement of the throttle stick translates into precise vehicle movements.

Compact and Lightweight:
Designed to be mini-sized and lightweight for easy handling and installation, the Furitek SCORPION system is perfect for keeping your 1/18 Arrma Grom truck agile and responsive.

Easy Programming:
Simple and intuitive programming via the Furicar App on both Android and iOS platforms makes setting up and customizing your ESC settings straightforward and hassle-free.

Real-Time Telemetry:
Receive real-time telemetry updates up to 10Hz, keeping you informed of your vehicle’s performance. This data can be crucial for making real-time adjustments and improvements.

Free Lifetime Firmware Updates:
Benefit from free lifetime firmware updates to keep your system up-to-date with the latest features and improvements. This ensures your ESC and motor combo remains at the cutting edge of performance technology.

Free Carbon Fiber Servo Mount:
Included with the system is a high-quality carbon fiber servo mount, providing a durable and lightweight mounting solution for your servo.

ESC Specifications:
Battery Support: 2-3S LiPo batteries
BEC Output: 5.5V/7.4V/8.4V, 3A
Constant Current: 40A
Burst Current: 70A
Built-in Power Switch: Integrated for convenience
Built-in Wireless setup module
Dimensions: 0.63 x 1.1 x 0.39 (inch), 16x28x10 (mm)
Weight: 15.2 grams (0.53oz)
Motor Specifications:
Motor Type: Sensored Waterproof
Motor Kv: 5600
Watt: 300W
Battery: 2-3S
Resistance: 0.035ohm
Max Current: 30A
Slot/Pole: 12 slot/4 pole
Motor size: 24*35mm
Shaft: 2.3*12mm
Weight: 54g
Motor Features:
Sensored 4 Pole hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. Japansese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
Additional Features:

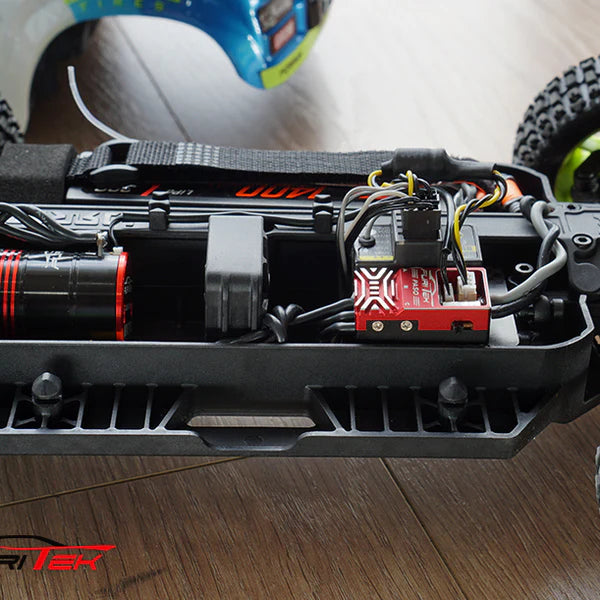

Plug-and-Play: Fully compatible with the IC2 battery connector of the 1/18 Arrma Grom trucks.
EC2 Connector Conversion Kit: Included for additional connectivity options.
Stock Compatibility: Compatible with the stock pinion and 2.3mm stock shaft of the 1/18 Arrma Grom trucks.
Built-in Bluetooth Module: Allows for parameter adjustments during operation without opening the electronics.
Intuitive App: The FURICAR App enables drivers to set up and adjust parameters effortlessly.

Package Includes:

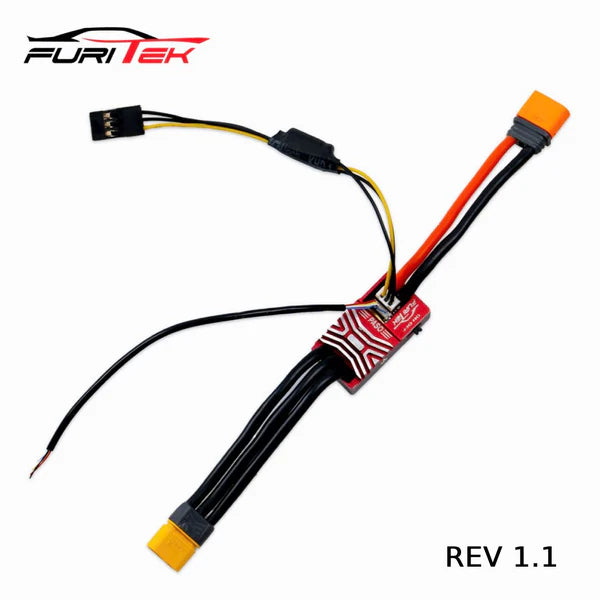

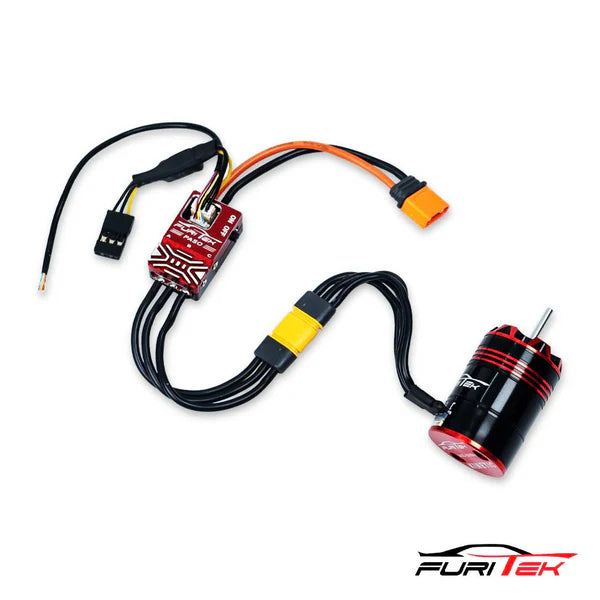

1x Furitek 40/70A PASO Sensored/Sensorless ESC built-in wireless module
1x Furitek 5600kv KINETIC Brushless Sensored Motor
1x User Manual
2x Sensored Cable
1x Signal Cable
1x Adapter IC2 to EC2
1x Free Carbon Fiber Servo Mount
This advanced combo brings significant power and smooth control to your 1/18 Arrma Grom truck, making it a top choice for both novice and experienced drivers. Upgrade your monster truck with the Furitek SCORPION Brushless Sensored ESC/Motor Power System and experience the difference.
